Hello everyone, After the last article sharing, I believe that everyone has a little understanding of the MG Bluetooth Mini Dual Modular Mechanical Keyboard and attach the link address.
MG mini mouth bluetooth wired and wireless mechanical keyboard dual mode support mobile phone PAD computer cherry axis 299 yuan Lynx featured direct link
Eat a little crab: MG Mini mouth blue mouth Bluetooth cherry mechanical keyboard and Jun sharing Preface: Long time do not eat crabs, and I recently burned a few peripherals, because I suddenly learned a reason, burning peripherals can indeed make people poor I am a living example. As to why I bought this keyboard, I saw that there are valued friends broke the news, cherry dual-mode Bluetooth backlighting with a shaft 279, did not hold back the old fault and guilty of eating for a while crab, by the way send an article for everyone's reference, defraud a few Ten gold coins are now attached to the purchase link, it is unfortunately there should be no toxic price of 279 ah | Like 13 Comments 50 Collections 63 View Details These days off work is a little boring, and I got an idea to paint it, and I personally feel that letting my mouth be more cute, so I’ll share it with my friends, or I’ll use the old routine to defraud me of gold coins. Although I did not cheat a few gold coins last time, I hope to gain a bit more in this period. I hope everyone can give us more support.
Text version: Screwdriver*1 Sandpaper*2 (regrind, finely polished) Spray*2 (white and green) UV*1
process: There is no record of using SLR, we will share the process of the text version, if you have any inconvenience, please also bear with us.
1. Disassemble the keyboard and remove the upper and lower shells (with disassembly)
The screws on the keyboard are all at the bottom, because it is the key line separation, so we just need to rest assured that after we unscrew the screws, do not worry about breaking the cable.
The battery is 750 milliamperes. The buddies can guess the usage time of the keyboard under the wireless status. The landlord does not have the test time. Because it is the interval to use the keyboard to work, how long it takes to fully charge the battery is really not the bottom.
Double-sided wave fiber board, now the PCB version is basically washed out after processing, there will be no dirty feeling.
Glass diodes, if compared with current patchless diodes, can be easily damaged if they are subjected to large vibrations, but generally it does not matter. As long as you don't care about the keyboard, the solder joints are still quite full.
The Bluetooth chipset comes from Broadcom's 20730 Bluetooth chipset. The official introduction is perfect without loss and seamless transmission.
2. The next step is the grinding process
Why do we need two sandpapers, because we must finely polish them, so everyone must not take it seriously in this step and must take it seriously. Otherwise, you will have to cry when the paint is infiltrated and you don't go in. You will cry with large sandpaper, and then Carefully polish with fine-grained sandpaper, taking into account every corner of the paint (especially the corner), do not be lazy, until the touch is very smooth, clean the shell to the sun.
In addition, when tearing the nameplate and floor mat, it is necessary to heat it with a hair dryer first, and then tear it again. In this way, you can avoid tearing the nameplate and tearing the mat.
3. The third spray paint, a bottle of white, a bottle of green
This Dongdong can go to X Bao search, general spray car furniture can, spraying this process should be particularly emphasized. First of all, we must first apply a layer of white paint. There is no picture here. I'm sorry everyone (I suggest you find an open carton box, put the shell on it, to facilitate painting)
Matters needing attention: 1. When spraying, first shake paint, shake a few seconds 2. Spray a little distance away, not in front of a scramble, about 40 cm can, otherwise it will be a mess 3 When spraying, be sure to spray evenly and thoroughly. Don't mess around. After spraying, don't touch it. It's a scar. 4. Pay attention to cover your nose and mouth, and you can use a mask. May be accompanied by a particularly large lethality, and there will be a slight injury to the human body 5. Spray the white paint on the sun for 2 hours, do not put it in a dusty place, it is recommended to place the top floor of the house, no dust, the sun Big. 6. After the paint is finished, it can be sprayed with green paint. Even if it continues even after the sun shines, it is recommended to dry for 1.5 days.
4 over the UV
As to why the UV is over, for the keyboard, there will be a mirror effect on the exterior after UV exposure, and it will be more beautiful. Even if it is not sprayed, it will be easy to lose paint after a long time. After spraying, it is recommended to dry for about 1 day.
This time is about 3 days, there is no feeling like practicing elixir

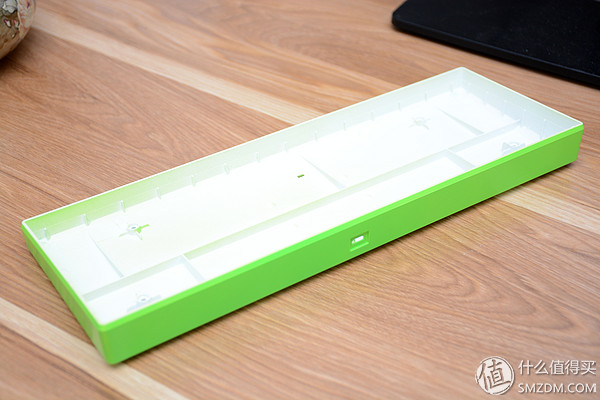

Achievements:
Looking at the results, the little guy who looked forward to for two or three days was finally born, and the effect was fairly good. There was no place to destroy the three views and he was greeted with expectation.
It's so much better to put on the keycap. There's no money to buy the keycaps that have lost.
Look at the bottom, the nameplate is also difficult to paste, and all the pads are installed. People do not know that you are a nephew. You can also install B to say that this is the result of customization.
end:
In fact, sometimes DIY is just a little fun, old and fierce, aspirations, and a lot of fun playing mechanical keyboard, not only lighting, feel, keycaps, etc., DIY fun is actually very enjoyable. Well, if there is anything that needs to be exchanged, we can leave a message for discussion. Thank you!
