One day after watching Dongyang Zifu Shaoyang Jun's sinister drama, open 16G mobile phone, want to take a photo, suggesting that memory is insufficient, the next update, also prompted insufficient memory, brush a WeChat, but also the card half dead. Well, looking at the WeChat and navigation accounted for a lot of space, this commonly used application can only clean up can not be deleted, can only take a photo video knife.
The cloud disk is a solution, but now one cloud disk on the Internet is invaded. It is indeed not safe. After all, photos still carry a lot of memories. This time I thought of a private cloud.
Bai Qun Heiqun I used to play before, had previously entered a DS213J, also used the mini unit too dark group, since it is also familiar with, then this time thinking about saving directly on the white group.
There is a 4T red disk on the hand, thinking that raid group is not fly, and his own data volume is not too large. Naturally, he saw the DS116 in a single position. Look at these parameters, well, it's up.
State Bank genuine Synology Synology DS116 1 disk home NAS private cloud network storage server (without internal hard disk - empty box) 1250 yuan Amazon China direct link
Western Digital (WD) red disk 4TB SATA6Gb/s 64M desktop hard drive (WD40EFRX) 1399 yuan blue red purple black and yellow is now Western Digital hard drive's approximate price positioning (green disk has been incorporated into the blue disk sequence, buy blue disk need to pay attention to speed), The red-violet-black-yellow four-disk hard disk is designed as a special function, so its positioning is different, and it does not represent actual performance. This red disk positioning is used as a NAS disk and can handle long-time/high-speed read/write operation design. Compared with the 7*24 continuously running purple disk and the large-throughput black disk, it is more suitable for use as a home computer hard disk. 4 Jingdong direct link to encyclopedia background knowledge
Founded in 2000, Synology has focused on creating high-performance, reliable, feature-rich and green NAS servers. It is one of the few Chinese companies in the world that has received worldwide recognition as a pure network storage solution. .
The DiskStation Manager operating system is the core product of Synology. It can be assumed that the vast majority of users have chosen Synology since DiskStation Manager.

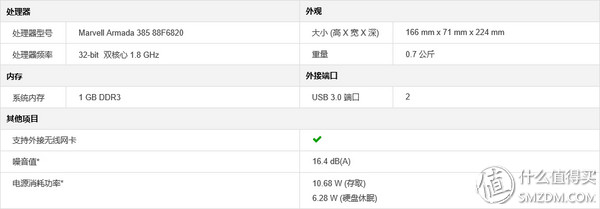

Product parameters
The fairly solid corrugated packaging is not because of the small size and roughness. What is more amazing is lightness and lightness. I once thought that it was not worth the price.
The front of the package is neatly affixed with a briefing sheet, but at the moment I am more concerned with why it is possible to paste such flat, impeccable bubbles that are the masters of the film, and I am intoxicated with this wonderful concern.
Same sticker without bubbles
Value is a series of group Hui, be regarded as the mid-range series, single-pane Value is still a bit of meaning.
Seeing that you are imprinted, I will not worry about why I didn't need to post it. By the way, Tucai's website server under the group Hui, what age, what response speed.
The side of the box parameter map, the data is more detailed, to help everyone understand the next. What type of font is Fengfeng Road's "feng" character?
Looked at all nonsense, just like the one I wrote about this boxing commentary, nothing more than this ink printing looks sharp and the workmanship is fine.
For English fonts, I have always felt a strong sense of design, but Chinese fonts are more difficult to design. Fortunately, Chinese characters have more meaning.
On both sides, I feel more than a figure, made two positions, and synthesized one.
Officially opened, indeed, there must be a film for Kaiyuan, and Wanchai's goods are so...
The accessories are concise, the specification is concise, all kinds of concise, after all, is bought by oneself, do not say simple ......
This is the goods, Nightlife possessed, saying that night is black clothes from beginning to end, it touches on his character of the stuffy gourd.
Positive face, chrysanthemum fit, front three eyes, small hip size chrysanthemum one, two 3.0 is a bright spot, after all, single-disc position, to provide conditions for the future to become smaller.
Hollow to do cooling, always feel more refined, some chassis manufacturers can not learn, do not always do the honeycomb hole, stamping is too simple.
Four feet, plastic material, slightly shock-absorbing effect, narrow point, still barely stand.
The altarmates who have used the group of Hui are aware that they have had a wrong hand.
There is no basis for a single position.
The ubiquitous Fu Mukang is a bit unsightly, but it is inseparable.
4T red plate baby
Well, it is so fit. Forgive me, I really can't shoot it.
There are numerous tutorials on Bai Qun and Heiqun on the Internet. There are also many in this forum. I don't want to use the Raiders from the installed machine to the copy again. I'm here to do a few dry goods reviews from my own use point of view.
1 First of all, I came to care about the transmission speed measurement. In the same folder, I placed a large file, and numerous KB-level small files. The left picture shows the continuous transmission speed of large files, and the right picture shows a large number of Small file transfer speed. It can be seen that the difference is still relatively large. In addition, this is a screenshot of the writing speed. The reading speed is not released, and it is of little significance. It can go to the peak and there are tens of M underneath.
2 is also the power consumption, after all, 24 hours open, home a bunch of standby equipment, the accumulation of less than more, the province still wants to save it, the official data is relatively low, you can refer to the parameter table at the beginning of the article, measured here to see See if it can meet the official data standards. In the figure above, the left side is the normal standby power consumption, the middle is the power consumption when transmitting data, and the right side is the power consumption after resting and sleeping. Unlike sleep, you can wake up by accessing the share. Therefore, the reference power is the power consumption of sleep. Most of the time you should sleep. It can be seen that the performance is better than the official data. It may be that the 4T red disk itself is a NAS disk, and its power consumption is also low.
3 The biggest reason that I think I purchased is a mobile phone photo backup. The basic friend had previously recommended Baidu cloud, onedrive, etc. I can only say that after using Fai Fai, the ease of use before the victory was recommended. The first step is to first install Synology's DSphoto software and select backup in the menu. Here you can set the options for automatic backup of the mobile phone. There are automatic triggering and manual triggering. If you set the address fence, you can enter or leave a certain position. The area automatically triggers the backup. I set it here to be manually backed up, that is, just open DSphoto and then automatically upload photos and videos from the phone without pressing any button. Of course, if you use the quickconnect id when you are logged in, you can upload photos outside the 4G home to see the traffic. When I need to find a photo, I can also find out through DSphoto at any time. Since then, my 16G mobile phone has been almost half alive.
4 Another major reason for purchasing NAS is media sharing. Since I just moved into my new home, the projectors and other devices were installed and it was found that the win10 host used for file sharing was not very stable. Some software access was normal, and software access such as TV boxes was intermittent, eliminating network problems and trying to install win7 without problems. After that, it appears to be a win10 permission agreement problem. After the DS116 is officially put into use, all sharing is normal, and the projection box can play the 40G+ Blu-ray original disk in the NAS normally with 5G wireless. It has to be said that Synology does have some achievements in stability and compatibility.
5 The amount of data in each device of my home is not large. HD originals are also seen and deleted. Therefore, we have conditions to be a family data center. Therefore, all three computers in the home are equipped with an SSD installation system, and there is no HDD directly. The NAS share folder maps the cost of disk usage. There is no big difference between normal use and the installation of a physical hard disk. Gigabit LAN itself does not pose a problem in running a 100Mbps transfer rate. It is nothing but a large number of small file copies that read and write slower than the local hard disk.
6 remote download is also a function I intend to use, in the unit will be able to remotely operate the home NAS, it is quite convenient, it is said that Thunder remote download has been sealed, there is time to study. Big sisters waited for me.
The DS116 is a rare single-bay NAS server in Synology products. Although only a single bay is available, performance parameters are not inferior to many of Synology's products. Both the CPU and memory capacity have reached the mid-to-upper level. With two USB 3.0 interfaces, the problem of capacity expansion is not great. And from the point of view of the parameters, hardware indicators have exceeded the sales of the larger DS216play but the price is relative to the people, the cost is higher, it is worth recommending.
